Parameters:
Diameter: 12mm
Mechanical interface: G 1/2" (BSPP1/2")
Flow range: 250L/min (standard condition)
15m³/h (standard)Maximum input current: 250mA
Maximum working pressure: 0.8MPa
Operating temperature: -10~55℃ Power consumption: ≤10mW
Instantaneous flow resolution: 0.01L/min (standard)
Cumulative flow resolution: 0.001m³ (standard)
Pressure loss: ≤2000Pa
Standard calibration gas: Air (20℃, 101.325kPa) Dimensions: 98*50*141mm |
 |
Features:
1.Two power supply modes:
①. Power adapter: External power (5-24) VDC
②. Four AA batteries (LR6),6VDC2. The sensor chip adopts thermal mass flow measurement without temperature and pressure compensation, which ensures the high-precision measurement of the flowmeter.
3. High sensitivity, can start to measure very small starting flow.
4. Multi-sensor integration is realized on a single chip, so that its range ratio reaches 80:1 or even higher.
5. High stability, high accuracy and excellent repeatability throughout the process.
6. Support a variety of gas measurement, fast response speed.
7.Parameters can be configured by pressing the button, and it has the function of over-range alarm indication. |
Wide range of applications: mechanical and electrical industry. Food industry.
Tobacco industry. Analytical instrument industry. Chemical industry. Beverage industry. Glass industry. Scientific research institutions. Pharmaceutical industry. Agriculture, forestry and fishery |
|

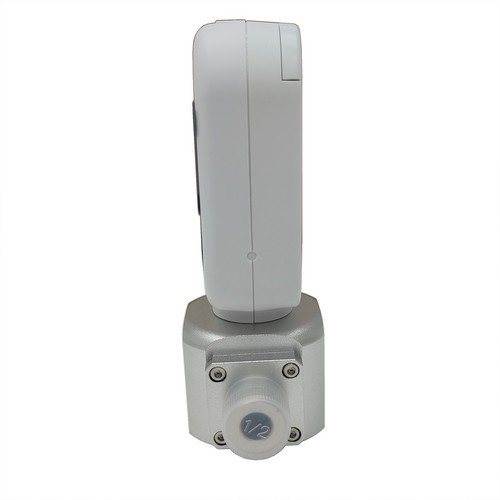

| Item Included Digital gas mass flowmeter Oxygen, nitrogen, air flow tester #02too2633 |
|
